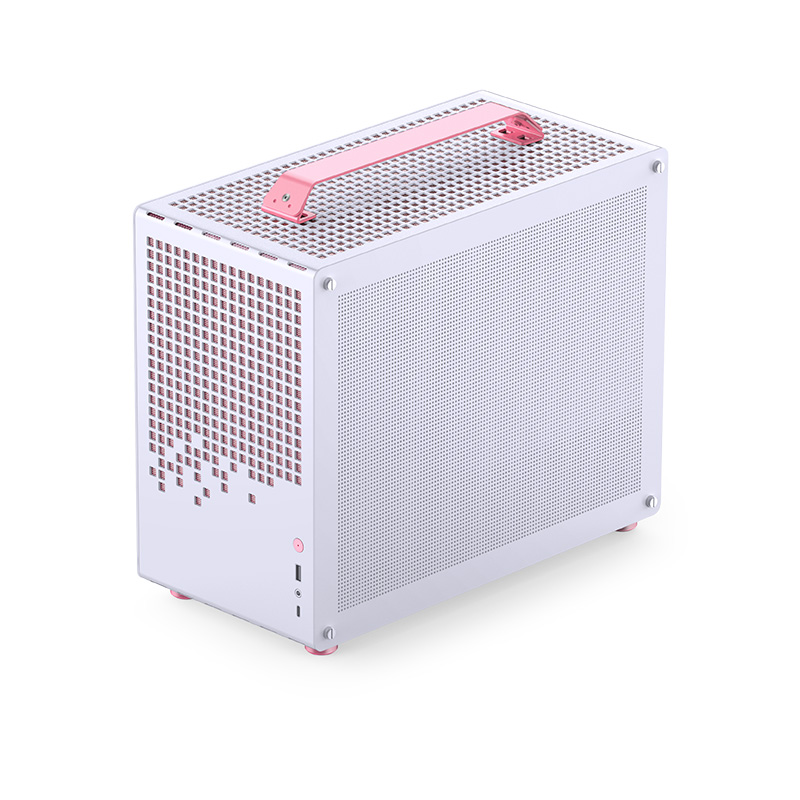

Z20 Tempered Glass Version Pink/White

High-performance hardware compatibility / compact design

Building a compact desktop mini-host is fun, but also comes with many trade-offs. As the case size shrinks, conflicts such as compatibility, heat dissipation, and installation experience gradually increase, hence only a minority of users with ample experience possess a clear building strategy and assembly skills. In view of this, we constantly contemplate how to optimize the design to maintain a compact hardware layout, while enhancing the internal hardware compatibility, ultimately allowing more users to experience the practicality and joy of small form factor models.

● Main body dimensions 370mm*186mm*295mm (length/width/height, excluding handles/feet and other protrusions), only about 20L in volume
● Frame integrated bending, with plate thickness up to 2mm / Equipped with removable portable handle
● Compatible with a 60mm thickness (30mm radiator + fan) performance grade 240 water cooler or 164mm(Intel CPU)or 163mm(AMD CPU) dual-tower air cooler
● Supports high-performance graphics cards up to 363mm in length & full-size Micro-ATX motherboards
● In air-cooled mode, supports ATX power supplies at least 15cm in length; in water-cooled mode, supports ATX power supplies at least 14cm in length
● Optimized installation experience design: flexible and variable hardware combinations within a small space
    Color : Pink/White
MODEL NAME
  • Z20 Pink/WhiteV1.0
KEY SPECS
  • DIMENSIONS(w/o handle/feet and other protrusions):370mm x 186mm x 295mm(depth/width/height)
  • DIMENSIONS(with handle/feet and other protrusions):382mm x 198mm x 335mm(depth/width/height)
  • Motherboard Support:Mini-ITX / Micro-ATX
  • Expansion Slots:4
  • Case Material:SPCC Steel, Tempered Glass
  • Weight:N.W. 5kg / G.W. 6.5kg
COMPATIBILITY & CLEARANCE
  • CPU Air Cooler Clearance:164mm MAX(Intel CPU)or 163mm MAX(AMD CPU)
  • Radiator Clearance:Top,up to 240mm
  • GPU Clearance:Up to 363mm, depends on other hardware configurations (Refer to page 11)
  • ATX PS2 PSU Clearance:Up to 180mm, recommended length ≤140mm,depends on other hardware configurations (Refer to page 11)
  • SFX PSU Support:SFX / SFX-L
FRONT I/O PORTS
  • USB 3.2 Gen 1 Type-A:1
  • USB 3.2 Gen 2 Type-C:1
  • Headset Audio Jack:1
DRIVE BAYS
  • 2.5":up to 3,depends on other hardware configurations
  • 3.5":up to 1,depends on other hardware configurations
FAN SUPPORT
  • Top:2 x 120mm / 2 x 140mm
  • Rear:1 x 120mm / 1 x 92mm
  • Bottom:2 x 120mm / 2 x 140mm,depends on other hardware configurations
PRODUCT CODE
  • EAN
  • UPC
